ProductsHygienic Series

Sanitary models with easy disassembly/cleaning and
high maintainability

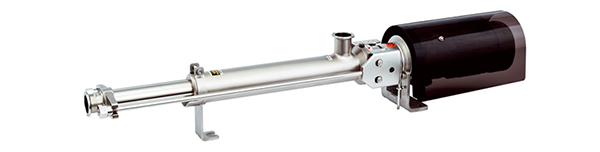

NHL-F
A sanitary basic model

Features

Featuring a significantly reduced number of parts that come into contact with fluid.
Easier than ever to disassemble for cleaning and maintenance.
Comes standard with flexible metal rods. Jointless between rotor and drive shaft for long service life.
Any driving unit is available, including inverters, servo motors, and others.
CIP (cleaning in place) types are also available.

Performance

Discharge volume : 0.6〜235 L/min
Discharge pressure : MAX 1.96 MPa

Conveyance examples

Food: Condensed milk, honey, milk, jam, yogurt, concentrated fruit juice, mayonnaise, ketchup, various drinks
Chemical: Emulsions, ink, adhesives
Cosmetic: Cream, milk lotions, shampoo, lipstick, surfactants, polymers
Electrical machinery: Positive/negative electrode materials for rechargeable batteries, electrolyte
Paper: Coating color, pulp, dye, viscous agents, calcium carbonate, talc

Case Studies

Other types

A sanitary model with wide suction inlet and built-in screw in the casing

Discharge volume : 0.6〜215 L/min
Discharge pressure : MAX 1.96 MPa

NHLS

The hopper-integrated model with no shaft seal makes for easy disassembly and cleaning.

Discharge volume : 0.5〜179 L/min
Discharge pressure : MAX 0.8 MPa

NVL

A compact model with an overall short length.

Discharge volume : 0.5〜13.2 L/min
Discharge pressure : MAX 0.8 MPa

NHL-G

Model capable of being inserted directly into containers such as drums.

Discharge volume : 0.4〜246 L/min
Discharge pressure : MAX 0.8 MPa

NTH-F

SIP (sterilization in place) support using steam and pressurized hot water.

Discharge volume : 0.4〜49 L/min
Discharge pressure : MAX 0.8 MPa

NHLA
