ProductsSmall-capacity Fine Series

Small-capacity models for injecting, adding, and
spraying fluids at small flow rates

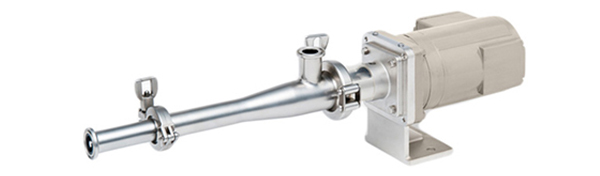

2NL
Sanitary models with easy disassembly/cleaning

Features

  • An integrated stator and ferrule make disassembly and cleaning simple.
  • Available in either flexible rod specifications or pin joint specifications.

Performance

Discharge volume : 5.2〜3630 mL/min
Discharge pressure : MAX 0.9 MPa

Conveyance examples

Food
Seasoning fluid, bittern, condensed milk, fruit juice, cream, chocolate, jelly, butter, mayonnaise, miso paste including dashi
Chemical
Ink, varnish, adhesives
Cosmetic
Milk lotions, cream, shampoo, perfume
Paper
Dye

Other types

A low-pressure type capable of handling up to a maximum discharge pressure of 0.3 MPa.

Discharge volume : 3.6〜3400 mL/min
Discharge pressure : MAX 0.3 MPa

CY

A high-pressure type capable of handling up to a maximum discharge pressure of 1.35 MPa.

Discharge volume : 5.5〜3600 mL/min
Discharge pressure : MAX 1.35 MPa

3NY
