— Automotive and Automotive Electronics Industry —

For use in a variety of manufacturing processes for automobiles (including bodies and powertrains) and automotive electronics.
Introducing Mohno Dispensers and system products useful for a variety of material application and filling processes.

ZONE1
What are
Mohno Dispensers?

The structure of Mohno Dispensers is the same as Mohno Pumps and features a progressing cavity pump that uses rotary positive-displacement.
The products take full advantage of this structure for precise, stable dispensing even with high-viscosity fluids.


Support for high-viscosity fluids even up
to 1000000mPa・s


Stable, high-accuracy applications for
extended periods

Product Lineup

Heishin offers a wide range of products with various flow rates for use in a variety of applications.
Heishin also offers numerous optional and system products.

製品ラインアップパネル
Click to open expanded view

ZONE2Automobiles [Body, Powertrain]

Mohno Dispensers are capable of highly precise applications even when used with high-speed robots.
The ability to achieve high-precision, high-speed application enables improved product quality and productivity.
Heishin also offers system products ideal for automobile manufacturing lines.

Mohno Dispenser

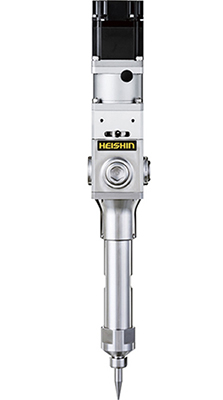

A high-capacity model for ultra-high-viscosity fluid application and filling
NDM

ndm

Fluids
Mastic sealer, hemming sealer,gap filler, adhesive, steel sheet, stiffener, damping materials, etc.

System Products

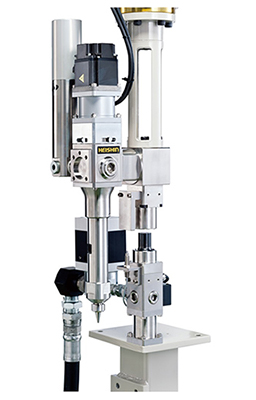

Has a charge-type application system for
hose-free use on robot arms.
Heishin Hose-Free System

hfs

ホースフリーシステムパネル
Click to open expanded view
Fluids
Hemming sealer, mastic sealer, etc

ZONE3Automotive Electronics [ECUs, Inverters, Cameras, Motors, Batteries, etc.]

Mohno Dispensers can be used for applying minute amounts of material on automotive electronic components.
Products are selectable according to the usage, such as microliter-level line/point application, wide-area application,
wide-area application, and two-component mixed application.

Mohno Dispenser

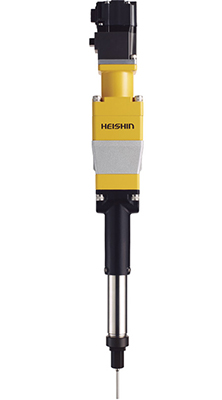

A standard model capable of
handling a wide array of fluids
ND

nd

モーノディスペンサー ND型パネル
Click to open expanded view
Fluids
Silicone resin, epoxy resin, UV-curing resin, silicone oil, anti-cementation material, lubricants, etc.

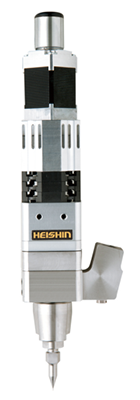

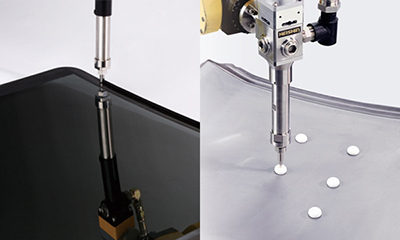

A minute application model for μL-level high-accuracy dispensing
HD

hd

モーノディスペンサー ND型パネル
Click to open expanded view
Fluids
Thermal material, silicone resin, epoxy resin, lubricant, metal paste, UV resin, adhesive, etc.

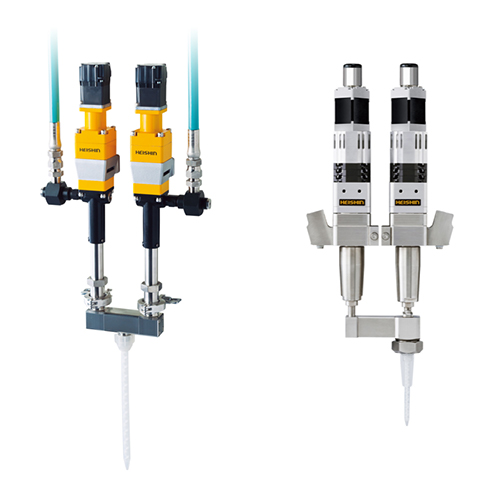

High-accuracy dispensing while mixing two-component adhesives
Two-Component Mixture Unit
(ND, HD)

ndhd

2液混合仕様ディスペンサーパネル
Click to open expanded view
* Large-capacity models (NDM models) are also available.
Fluids
Two-component epoxy resin, two-component silicone resin, two-component gap filler, etc.

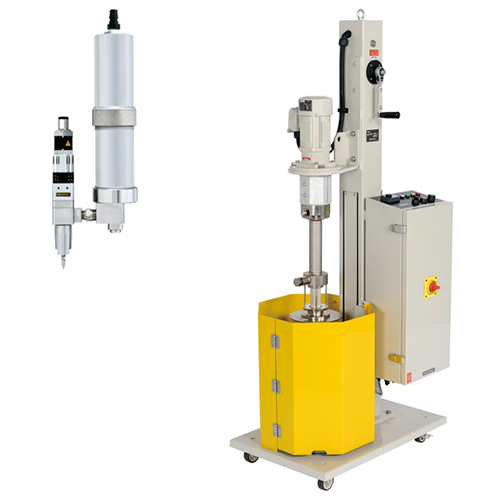

Feeding Devices/Feed Pump

Smooth application with no dripping fluids or
interruptions caused by air intrusion
Feeding Devices/Feed Pump

ntd

モーノディスペンサー ND型パネル
Click to open expanded view

Related products

Battery manufacturing
For applications requiring a high-accuracy feeding of electrode material:

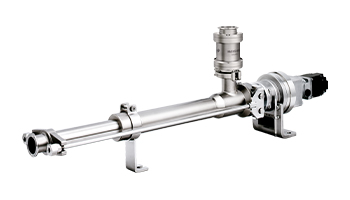

Mohno Pumps for Coating


For questions about products, contact our Marketing & Sales Department for more information.
